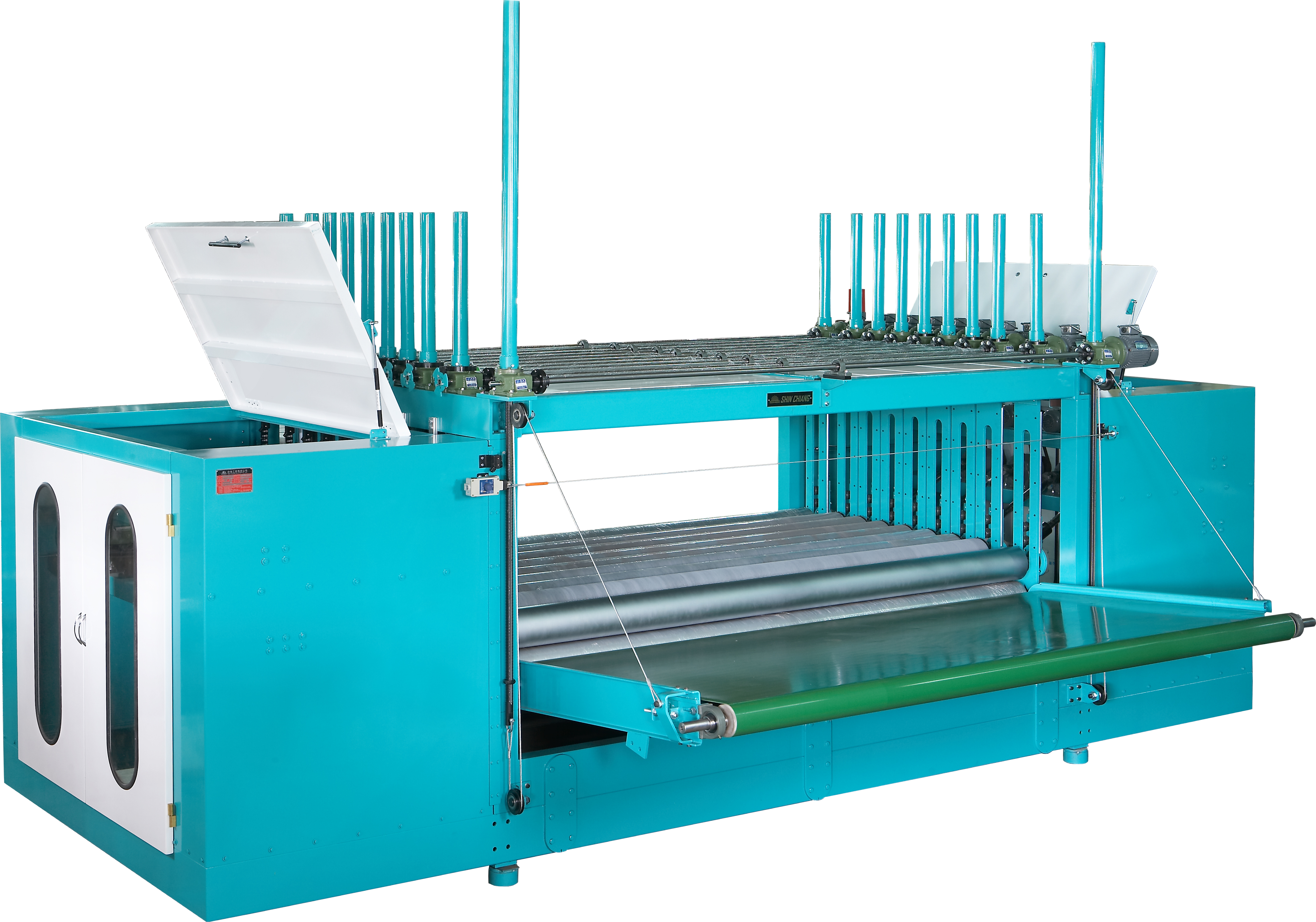

SCN-3000
產品介紹
|
規格說明
|
Description
|
|
|
|
工作寬度
|
Working Width
|
3000mm~8000mm
|
|
|
總 馬 力
|
Total Horse Power
|
12 HP (共31只馬達Total Of 31 Motor)
|
|
|
獨立傳動針布輪
|
Independent Transmission Metallic Wire Roller
|
ø165mm (ø215mm) × 15
|
|
|
入料電鍍壓棉輪
|
Infeed Press Roller
|
ø165mm (ø215mm) × 2
|
|
|
出料電鍍壓棉輪
|
Delivery Press Roller
|
ø165mm (ø215mm) × 2
|
|
|
最佳品質延伸比
|
Max Drafting Rate
|
1:1.8 (180%)
|
|
|
電動升降空間
|
Electric Lift Space
|
0mm~500mm
|
|
|
機台重量
|
Machine Weight
|
8000 KG
|
|
|
機台尺寸
|
Machine Dimension
|
長(L)
寬(W)
高(H)
|
6000mm (11000mm)
3000mm
2000mm
|
 |
 |
 |
